Coil Wrapper Conveyor Belt

Product Description

Coil Wrapper Conveyor Belt

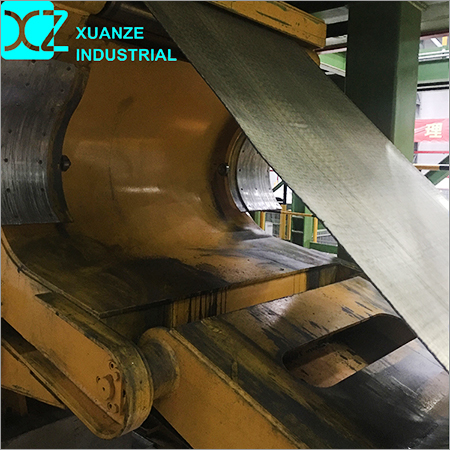

We have carved a reputedniche in industry for manufacturing and exporting Coil Wrapper Conveyor Belt. It is extensively utilized in steel & iron processing industries forcoiling thin sheets. This belt is comprised of wear resistant top cover made ofpolyurethane. It is mounted on a recoiler of continuous galvanizing lines forguiding the metal strip for the first couple of wraps. This belt is used incombination with the mandrel of the machine. SCoil Wrapper Conveyor Belt shows excellent resistance against oils, greases, and ozone.

Features:

• Has the ability to withstandpuncture and impact

• Assures good adhesionbetween the strip and belt

• Great strength to elongationratio to ensure tight coiling

Technical Details:

• Surface material: thick 1MM PU dark green
• Back Material: Thick 0.5MM PU white
• Intermediate material: white strong polyester fiber
  Thickness: 4 ~ 10MM ± 0.5MM
• Hardness: 90A1% in width Tensile strength: 30 N / MM
• Ultimate tensile strength: 350N / MM
• Surface and steel friction coefficient: 0.8
• Maximum operating speed: 400 m / min
• Recovery: Belt stretched to 2.5% recovery
• Peel strength: cloth and PU peel slightly 8N / MM
• Minimum turning wheel diameter: Forward: 100 MM
• Reverse: 150MM
• Temperature limit: -20 - 80
